Product Details: The 3-in-1 System

This furniture fitting is a three-part system designed to create a tight, right-angle joint between two wooden or composite panels.

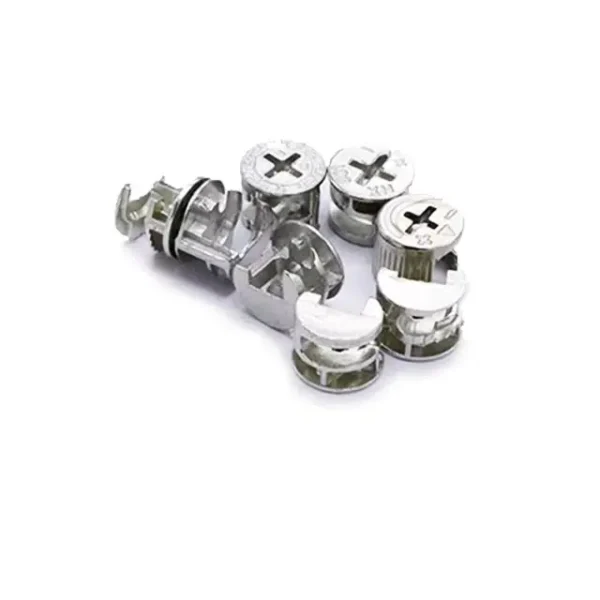

1. Cam Lock (The Disc): A cylindrical steel housing containing an internal spiral cam. When turned with a screwdriver, the cam engages with the head of the connecting bolt, pulling the joint tightly together.
2. Connecting Bolt (The Dowel): A steel dowel with a specialized head designed to be captured by the cam lock. One end has a machine thread to connect to the cam, while the other has a wood screw thread or is designed to be seated in a pre-inserted nut.
3. Insert Nut (The Sleeve): Typically a plastic or metal sleeve that is inserted into one of the panels. The connecting bolt is then screwed into this insert, providing a secure anchor point.

This combination creates a powerful clamping action that locks the two furniture panels together from the inside, resulting in a strong and seamless joint.

Product Parameters

The following table details the comprehensive technical and commercial specifications for our Furniture Cam Fittings.

General Specifications:

Product Features

Our 3-in-1 cam fittings are the preferred choice for modern furniture construction due to their numerous benefits:

• Strong and Secure Connection: Creates a robust and stable joint capable of withstanding the stresses of daily use.
• Concealed Hardware: The entire fitting is hidden within the panels, providing a clean, professional finish with no visible hardware on the outside.
• Easy Assembly & Disassembly: Allows for quick and simple furniture assembly with just a screwdriver. This makes it perfect for flat-pack furniture that customers assemble themselves, and it allows furniture to be taken apart for moving without damage.
• Durable Steel Construction: The core components are made from high-quality steel for long-lasting strength and reliability.
• Versatile Finish Options: Available in Zinc, Nickel, and Brass plating to resist corrosion and match other hardware.

Simple Installation Guide

1. Drill Holes: Precise drilling is required. Drill a large-diameter hole for the cam lock in the face of one panel and a corresponding hole in the edge of the mating panel for the connecting bolt.
2. Insert Components: Insert the plastic nut (if used) into the edge of its panel. Screw the connecting bolt into the nut. Insert the cam lock into its hole, ensuring the arrow or indicator points towards the entry hole for the bolt.
3. Join Panels: Bring the two panels together, guiding the head of the connecting bolt into the open side of the cam lock.
4. Lock the Joint: Insert a screwdriver (usually a Phillips or Pozidriv) into the cam lock and turn it clockwise (typically 180 degrees) until it stops. This engages the bolt head and pulls the panels tightly together, locking the joint.

Primary Applications

This hardware is essential for the construction of a wide variety of panel-based furniture, including:

• Kitchen Cabinets and Carcasses
• Wardrobes and Closets
• Bookcases and Shelving Units
• Office Desks and Credenzas
• Chests of Drawers
• Entertainment Centers and TV Stands
• Any form of flat-pack or ready-to-assemble (RTA) furniture.
