Product Details

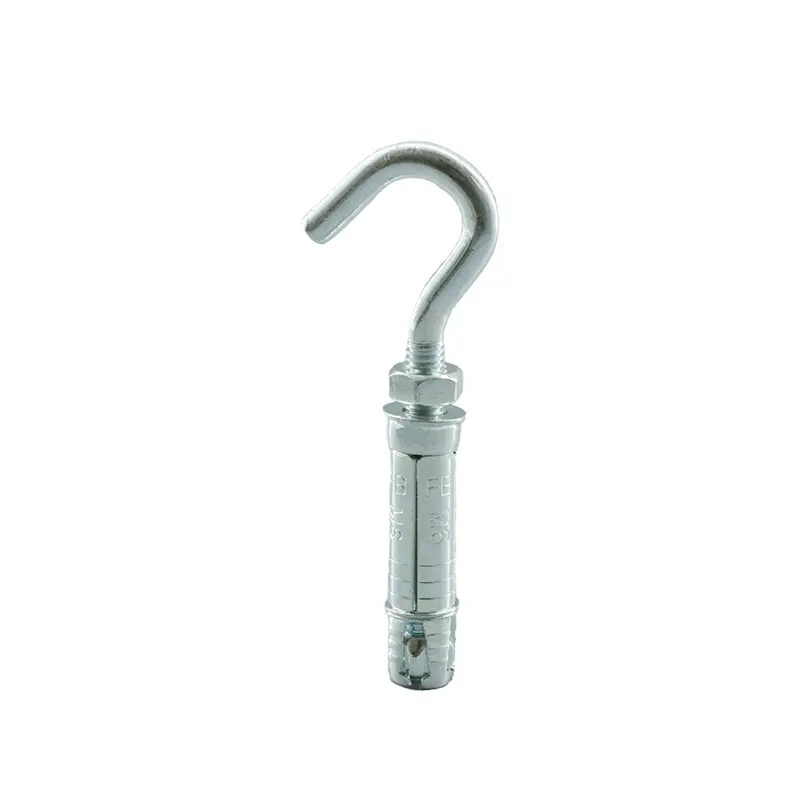

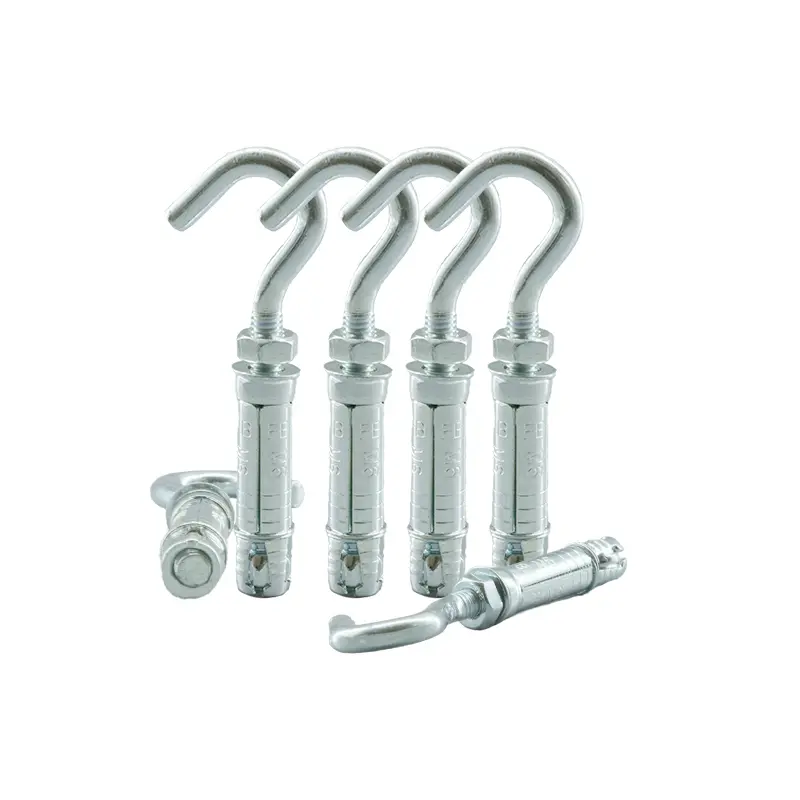

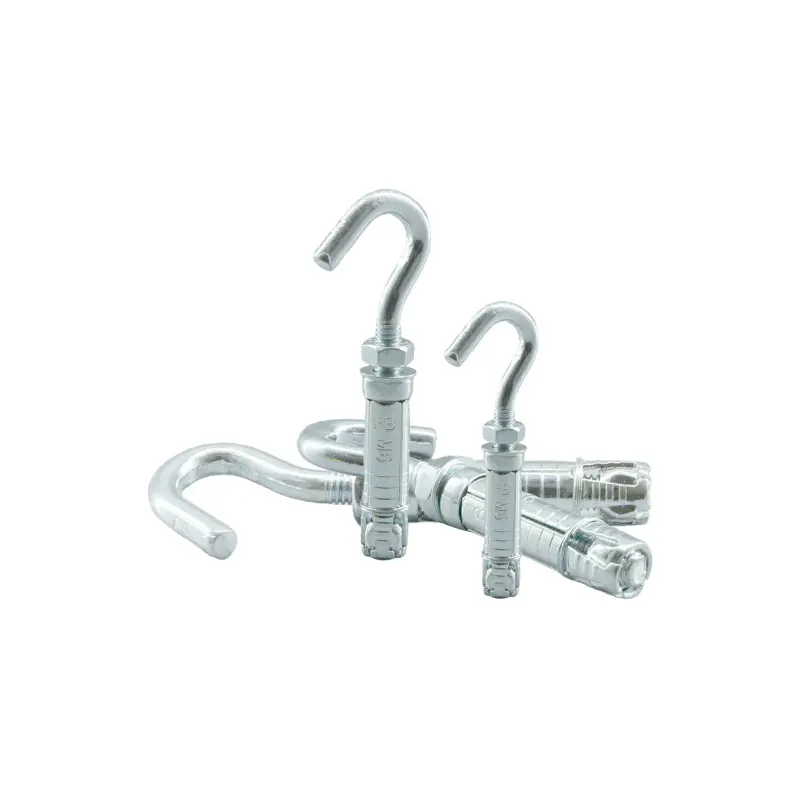

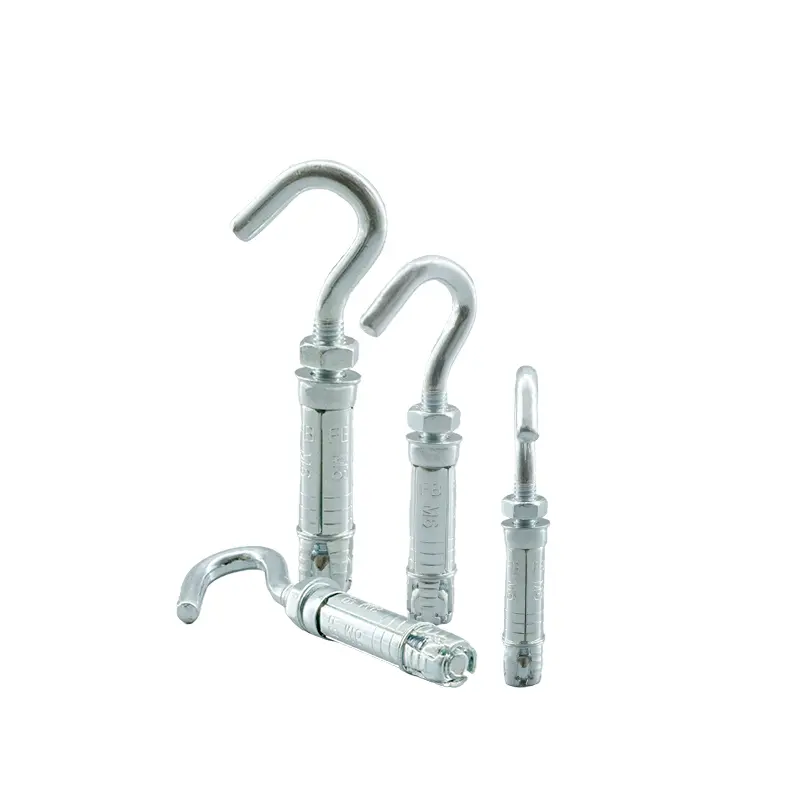

This anchor is a pre-assembled, four-component expansion anchor, also known as a sleeve anchor. The complete assembly is designed for strength and ease of installation and consists of:
- The Hook Bolt: A carbon steel bolt with a pre-formed open hook head, providing a ready-to-use point for hanging various items.
- The Expansion Sleeve: A cylindrical steel shield with expansion slots that encases the bolt shank.
- The Expander Cone: A tapered, threaded nut located at the anchor’s base.
- The Nut and Washer: A top-side nut and washer used to tighten the assembly and set the anchor.
Installation is achieved by inserting the complete anchor into a pre-drilled hole. As the top nut is tightened, the hook bolt is drawn upwards, pulling the expander cone into the sleeve. This action forces the expansion sleeve to flare outwards, creating a strong frictional grip against the wall of the base material. The White Zinc Plating (WZP) provides a clean, silver-like finish and a protective layer against rust in dry or mild-humidity environments.
Product Parameters
| Parameter Item | Specification Description |
|---|
| Product Name | 4 pcs fixing anchor with Hook bolt WZP |
| Brand Name | Duojia |
| Place of Origin | Hebei, China |
| Material | Carbon Steel |
| Surface Treatment | White Zinc Plated (WZP) |

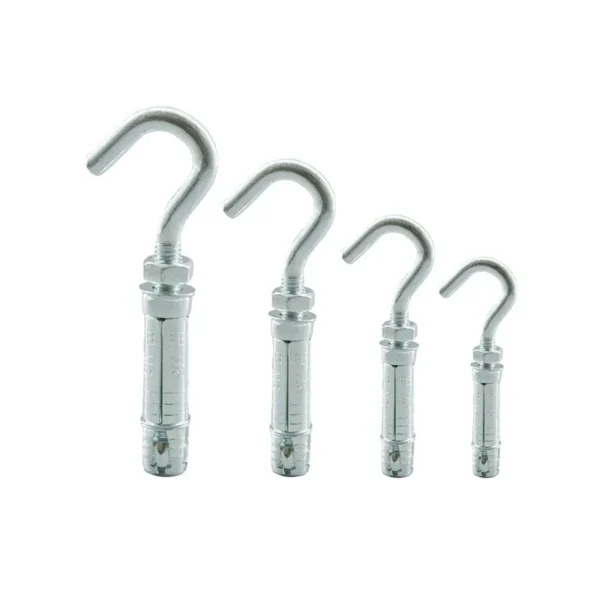

| Available Sizes | M6, M8, M10, M12, M16, M20 |
| Strength Grades | 4.8, 8.8, 10.9, 12.9, A2-70, A4-70, A4-80 etc. |
| Measurement System | Metric |
| Application | Heavy Industry, General Industry |
| Certifications | ISO9001, ISO14001, ISO45001, SGS |
| Packaging Options | Small Pack + Carton + Pallet; Bag/Box with Pallet; Custom Requests |
Product Features
This anchor is engineered for convenience and reliability, offering several key benefits for a variety of hanging tasks.
- Ready-to-Use Hanging Point: The integrated hook bolt provides a convenient, pre-installed attachment point for ropes, chains, cables, and other suspended items, simplifying installation.
- Reliable Holding Power: The robust four-piece expansion mechanism ensures a secure and stable hold in solid concrete and masonry for dependable performance.
- Corrosion Resistance and Clean Finish: The White Zinc Plating (WZP) offers effective protection against rust for indoor applications and provides a clean, professional appearance.
- Fast and Simple Installation: Supplied as a complete, pre-assembled unit, this anchor is ready for immediate installation, saving time and labor on site.
- Versatile Utility: An excellent choice for a wide range of light to heavy-duty hanging applications in construction, commercial, and residential settings.
Product Applications
The 4-Piece WZP Fixing Anchor with Hook Bolt is a multi-purpose fastener ideal for creating secure overhead or wall-mounted hanging points. In Construction and Renovation, it is commonly used for suspending conduit, ductwork, temporary lighting, and ceiling fixtures. For Interior Decoration and Commercial Fit-outs, it is perfect for hanging heavy signage, large displays, decorative elements, and retail fixtures. In General Industrial and Workshop settings, it can be used for organizing and hanging tools, cables, and light-duty equipment from concrete walls or ceilings.
