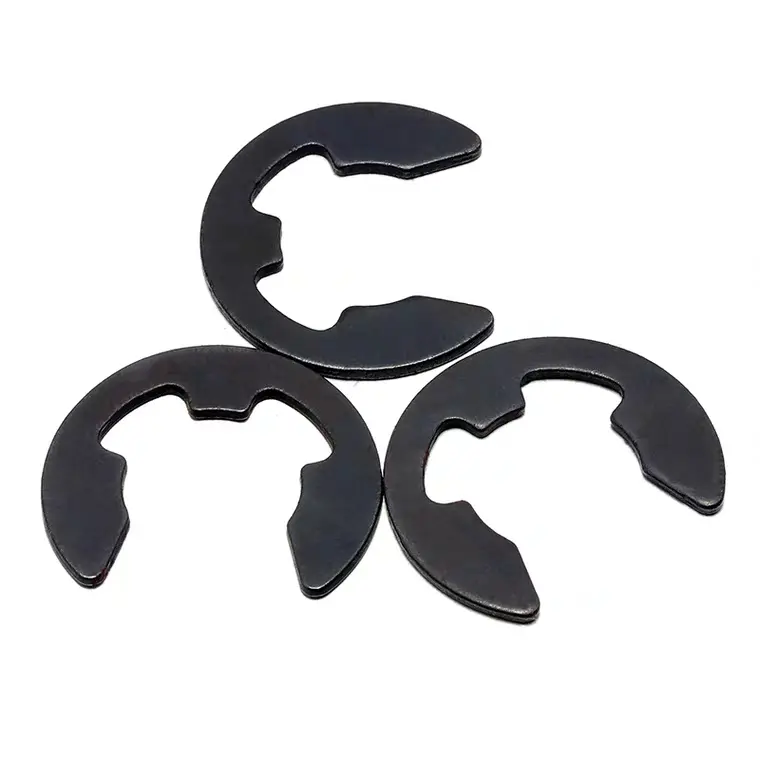

Our DIN 6799 Shaft Lock Washers, commonly referred to as E-clips or E-type circlips, are a highly efficient and economical solution for creating a secure shoulder on small-diameter shafts. Characterized by their distinctive three-pronged, semi-open “E” shape, these fasteners are designed for quick radial installation. This means they can be snapped into a groove from the side of a shaft, making them ideal for automated assembly and for applications where axial access is limited. Once installed, the E-clip provides a surprisingly large retaining surface, effectively preventing the axial movement of components like gears, pulleys, and bearings. They are a fundamental component in countless compact mechanical and electronic assemblies.
The functionality of the DIN 6799 E-clip stems from its spring-action design. It is installed by simply pushing it into a pre-machined groove on a shaft until it audibly “clicks” into place. The clip’s three internal prongs grip the bottom of the groove, while its inherent elasticity ensures a tight, vibration-resistant fit. For this product line, we offer high-quality 65Mn carbon spring steel, which is heat-treated to achieve the necessary hardness and resilience. The black oxide finish provides a good level of corrosion resistance and a sleek, uniform appearance, making it suitable for a wide range of industrial and commercial applications. We also offer these clips in 304 stainless steel for environments requiring higher corrosion protection.
The following tables detail the technical and dimensional specifications for our DIN 6799 E-Type Shaft Lock Washers.
General Specifications:
| Parameter | Description |
|---|---|
| Product Name | Shaft Lock Washer / E-Type Retaining Ring (E-Clip) |
| Standard | DIN 6799 (similar to GB 896) |
| Material | 65Mn Carbon Steel, 304 Stainless Steel |
| Finish | Black Oxide Coating, Black Zinc Plated |
| Size Range | For shaft diameters from 1.5mm to 24mm (M1.5–M24) |
| Application | Heavy Industry, General Industry, Machinery, Automotive Systems |
| Certificates | ISO9001, ISO14001, ISO45001, SGS |
Dimensional Specifications (in mm):
The table below shows a representative sample of available sizes. A full range is available to fit shafts from 1.5mm to 24mm.

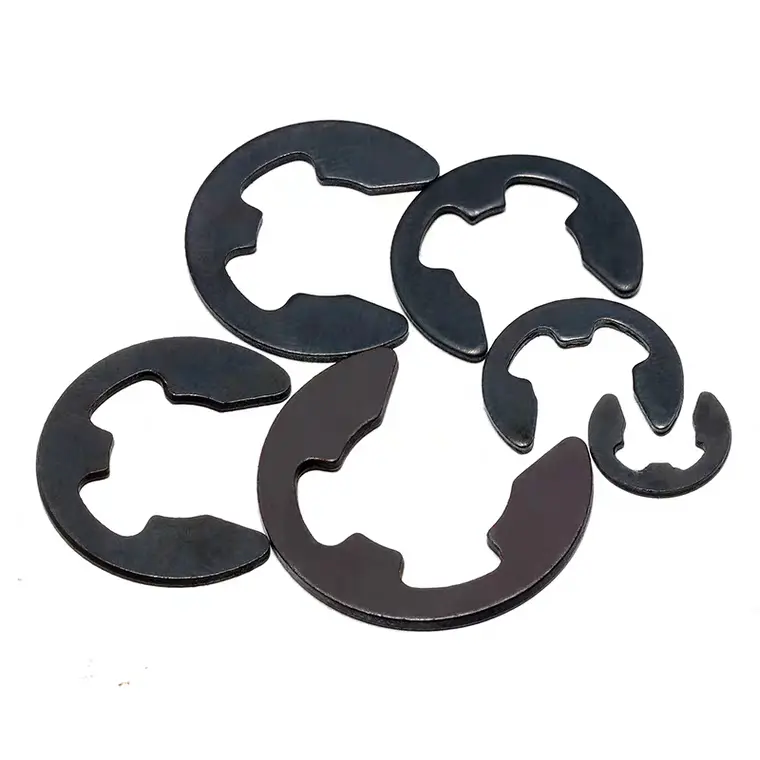

| For Shaft Diameter (d) | Ring Thickness (h) | Groove Inner Diameter (n) | Ring Outer Diameter (dc) |
|---|---|---|---|
| 1.5 | 0.4 | 1.28 | 4.25 |
| 4 | 0.7 | 3.34 | 9.3 |
| 8 | 1.0 | 6.52 | 16.3 |
| 15 | 1.5 | 12.61 | 29.4 |
| 24 | 2.0 | 21.88 | 44.6 |
Our DIN 6799 E-clips are engineered for performance and convenience, offering several key benefits:
DIN 6799 E-clips are a versatile fastener used extensively in applications requiring simple, low-profile axial retention on small shafts. Common uses include:
