Product Details

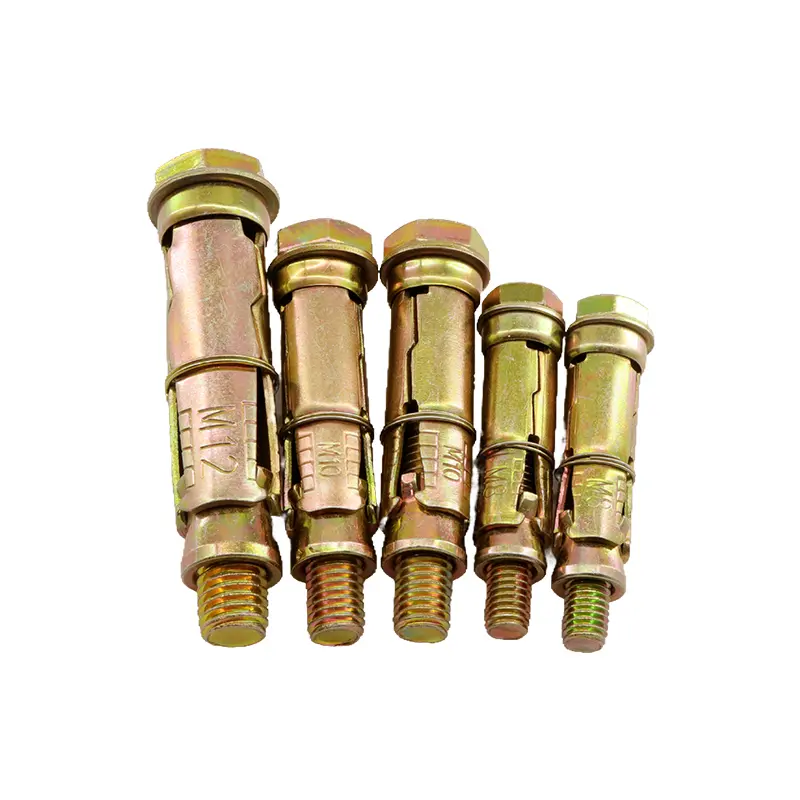

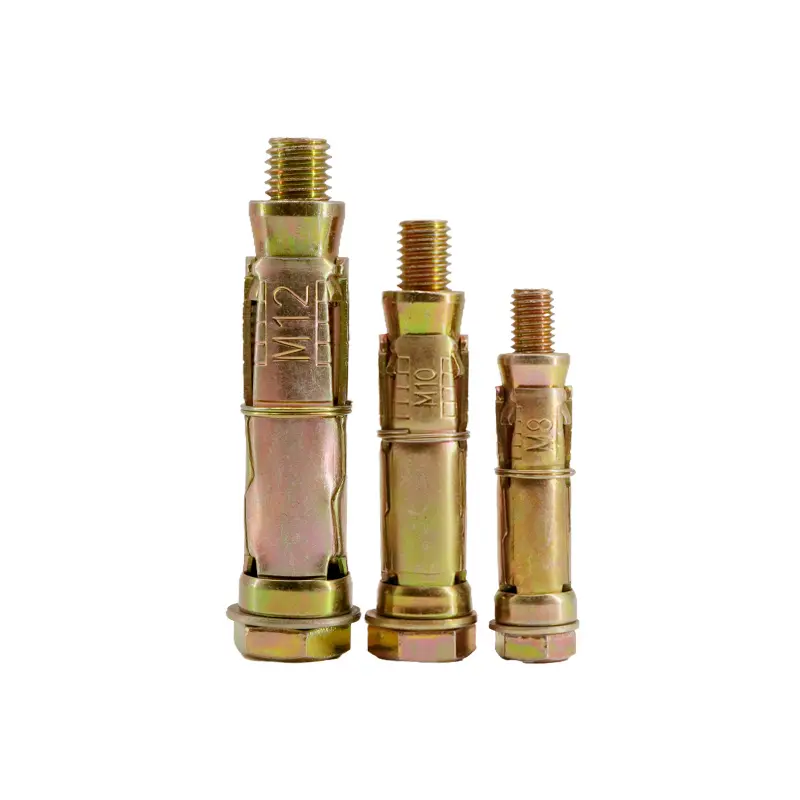

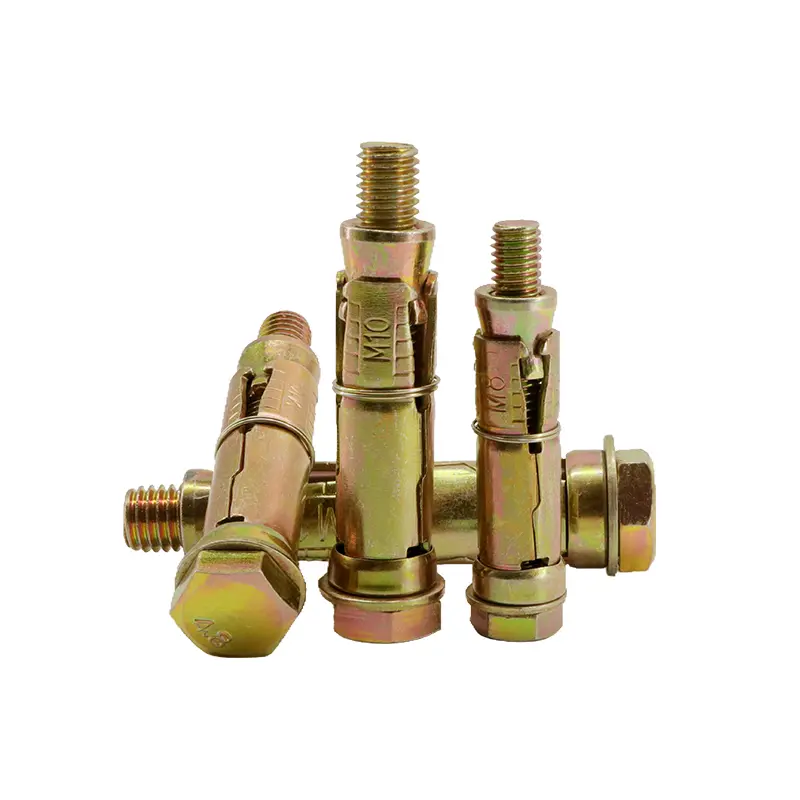

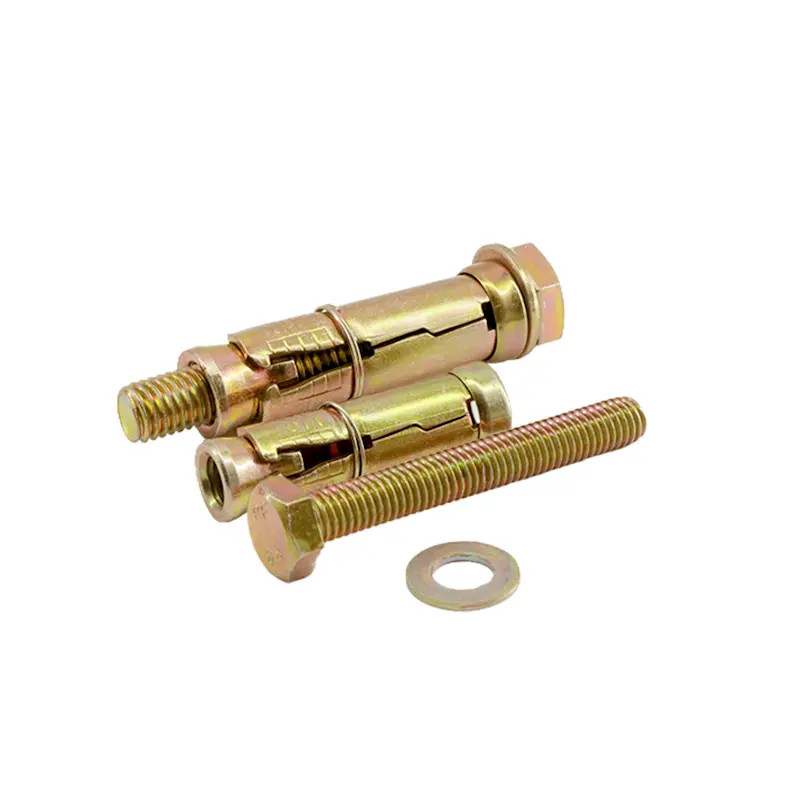

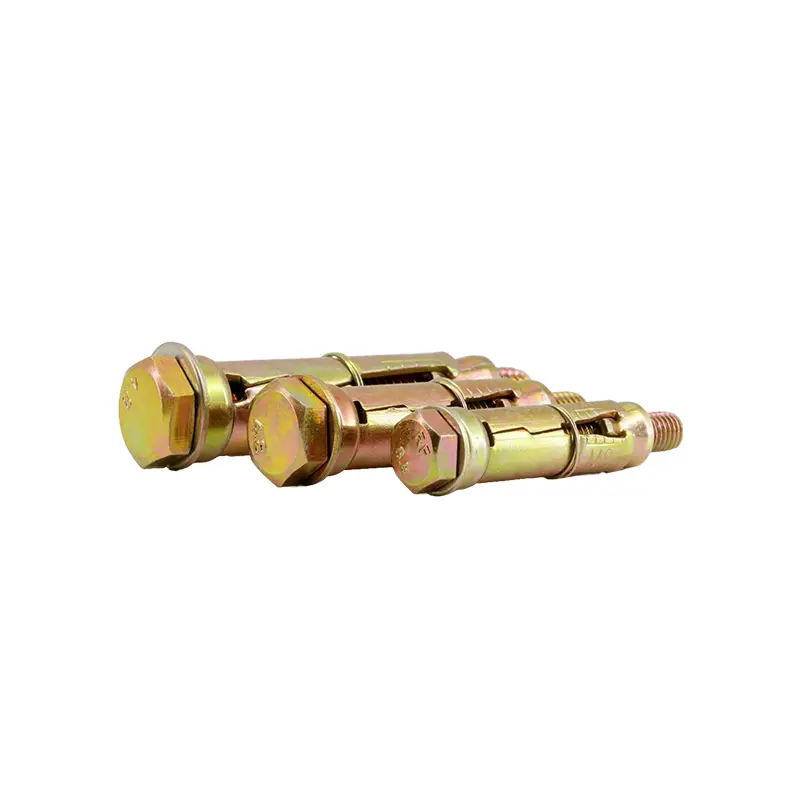

This anchor is a heavy-duty, pre-assembled expansion anchor, commonly known as a sleeve anchor. Its “3PCS” designation refers to its three primary functional components:

1. The Hex Bolt with Tapered End: A high-strength bolt featuring a standard hex head for easy installation with wrenches and a conical (tapered) end that acts as the expansion wedge.
2. The Expansion Sleeve: A single-piece, slotted steel shield that surrounds the bolt’s shank.
3. The Nut and Washer: A hex nut and flat washer that are used to tighten the anchor and initiate the expansion process.

Installation is straightforward. The entire anchor assembly is inserted into a pre-drilled and cleaned hole in the base material. When the hex nut is tightened, it draws the tapered end of the bolt up into the expansion sleeve. This forces the sleeve to expand outwards, creating a strong, secure frictional grip against the walls of the hole and locking the anchor firmly in place. The Yellow Zinc Plating (YZP) provides a superior layer of corrosion protection compared to standard zinc, making it suitable for more demanding indoor or sheltered outdoor environments.

Product Parameters

Product Features

This anchor is engineered for industrial-level performance, offering several key advantages for heavy-duty fastening.

• Heavy-Duty Fastening: The robust, three-piece expansion mechanism provides exceptional holding power for securing heavy loads and resisting vibration.
• Standard Hex Head for High-Torque Installation: The hex bolt head allows for quick and controlled tightening with standard wrenches or impact tools, ensuring proper installation and clamp load.
• Enhanced Corrosion Resistance (YZP): The Yellow Zinc Plating offers superior protection against rust and corrosion compared to clear zinc, ensuring a longer service life in industrial and construction environments.
• Reliable and Lasting Connection: Designed for permanent installations, this anchor creates a strong and durable connection for critical applications.
• Cost-Effective for Bulk Use: As a widely used industrial fastener, it provides a strong, reliable solution that is cost-effective for large-scale projects and bulk purchasing.

Product Applications

The 3-Piece YZP Fix Anchor with Hex Bolt is a versatile and essential fastener for a wide range of industrial and construction applications. It is specifically designed for:

• Securing Machinery Base Plates: Anchoring the bases of industrial machines, motors, and heavy equipment to concrete floors.
• Structural Connections: Fastening steel support brackets, beams, and columns to concrete foundations.
• Construction Projects: Securing scaffolding base plates, guard rails, and structural framework.
• Warehouse and Factory Installations: Mounting heavy-duty pallet racking, conveyor systems, and safety bollards.
